Doukhobor Suspension Bridge
The Doukhobor Suspension Bridge spans the Kootenay River a short distance upstream from its confluence with the Columbia River in the West Kootenay region of British Columbia.

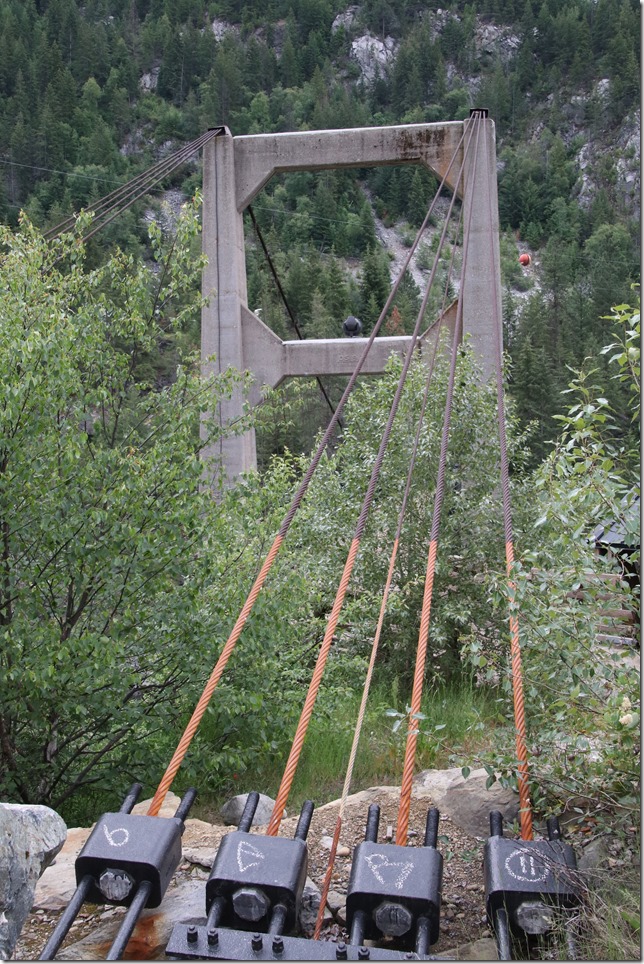

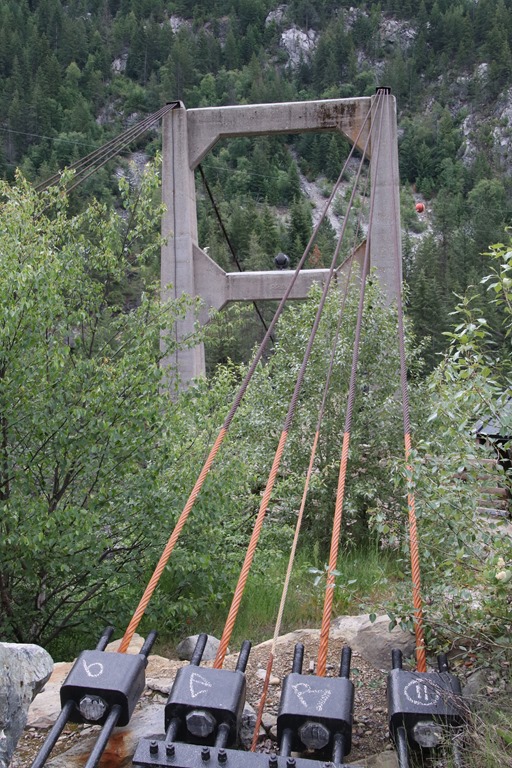

Built as a community effort, the structure is comprised of reinforced concrete towers that rise to a height of 14.6 metres (48 feet) and rest on concrete piers embedded in the rock face on opposite banks of the river. The two towers support four steel wire cables that are attached at both ends to steel sockets anchored in the rock face. The bridge deck linking the towers is 100.9 metres (331 feet) in length and is suspended from the overhead cables by vertical steel rods. The deck frame is constructed of structural steel covered by wooden planks, stringers and surface decking.
